GT5307B Digital Megger Insulation Resistance Tester 10M Internal Resistance Measurement

Name: GT5307B Digital Megger Insulation Resistance Tester 10M Internal Resistance Measurement
Brand: Bestone, Benetech
Price: 1 USD

Wholesale GT5307B Digital Megger Insulation Resistance Tester 10M Internal Resistance Measurement from china suppliers

MOQ : 10

Price : EXW US$40

Brand Name : Bestone, Benetech

Model Number : GT5307B

Certification : CE,ROSH,FCC

Place of Origin : CHINA

Payment Terms : T/T,Western Union,MoneyGram

Supply Ability : more than 1000pcs per month

Delivery Time : 3-5 working days

Packaging Details : bag and paper box

Model NO. : GT5307B

Rated Voltage : 100V/250V / 500V /1000V

Measure Range 1 : 0~1.5gΩ

Open Circuit Voltage : DC 100V +20% -0% ;DC 250V +20% -0%

Open Circuit Voltage 2 : DC 500V +20% -0%; DC 1000V +20% -0%

Measure Range 2 : 0~5.5gΩ/0~5.5gΩ/0~5.5gΩ

Transport Package : Box and Carrying Bag

Specification : CE, ROHS

Trademark : BESTONE

Origin : China

Contact Now

GT5307B AC/DC Measurement Short Circuit Protection Digital Megger Insulation Resistance Tester

Product Overview

This advanced insulation/continuity tester features a new design with large-scale integrated circuits for precise measurement of insulation resistance, DC voltage, and AC voltage. With comprehensive functions, high accuracy, and stable performance, it's ideal for testing transformers, motors, cables, switches, and various electrical equipment.

Key Features

Insulation resistance measurement with multiple voltage options (100V/250V/500V/1000V)
AC and DC voltage measurement with automatic identification
Small resistance measurement capability (0-999Ω)
Live detection and short circuit protection for tested resistance
Measurement data locking function
Polarization index and absorption ratio testing
Automatic discharge and low battery reminder
Large LCD screen with clear digital display
External DC power supply support (DC9V 1.5A)
10M internal resistance measurement
Over limit alarm with red indicator light and buzzer
High voltage alarm and test voltage display

Technical Specifications

General Specifications

Display	Large-screen LCD (up to 500 counts)
Over Limit Indication	Hi mark appears on insulation resistance range
Auto Range	Higher range: 500 counts; Lower range: 1 count
Sampling Rate	2 times per second
Operation Environment	Temperature: 0°C-40°C / Humidity: ≤85%
Storage Environment	Temperature: -20°C-60°C / Humidity: ≤90%
Power Supply	DC9V (6x1.5V AA batteries)
Dimensions	17611077mm

Insulation Resistance Test

Rated Voltage	100V/250V/500V/1000V
Measurement Range	0~1.5GΩ/0~5.5GΩ/0~5.5GΩ/0~5.5GΩ
Accuracy	±5%rdg±3dgt (above 100KΩ)

Small Resistance Measurement

Open Circuit Voltage	About 5.0V
Measuring Range	0-999Ω
Resolution	0.1Ω

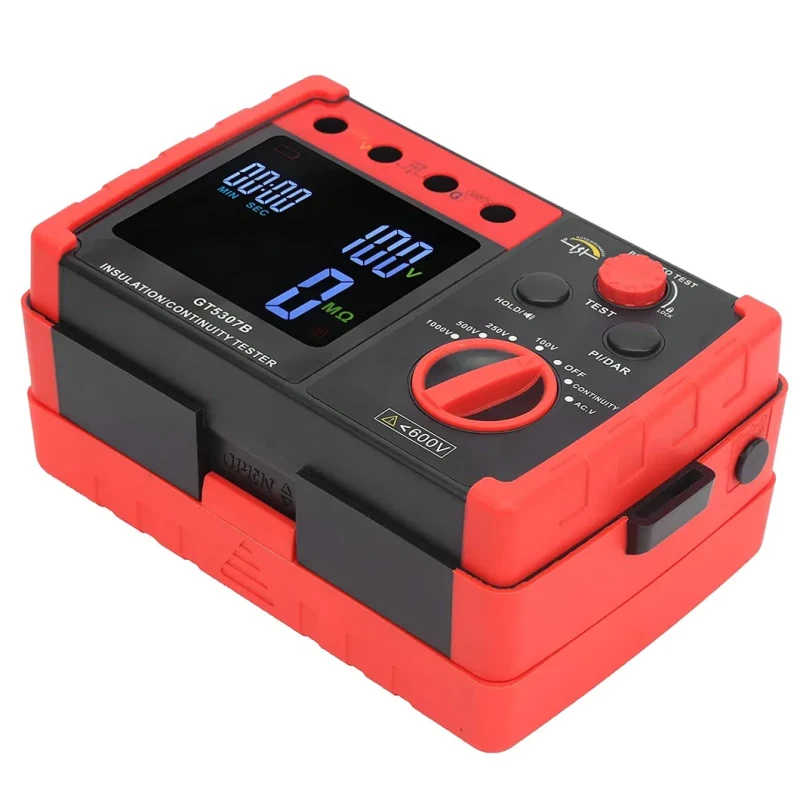

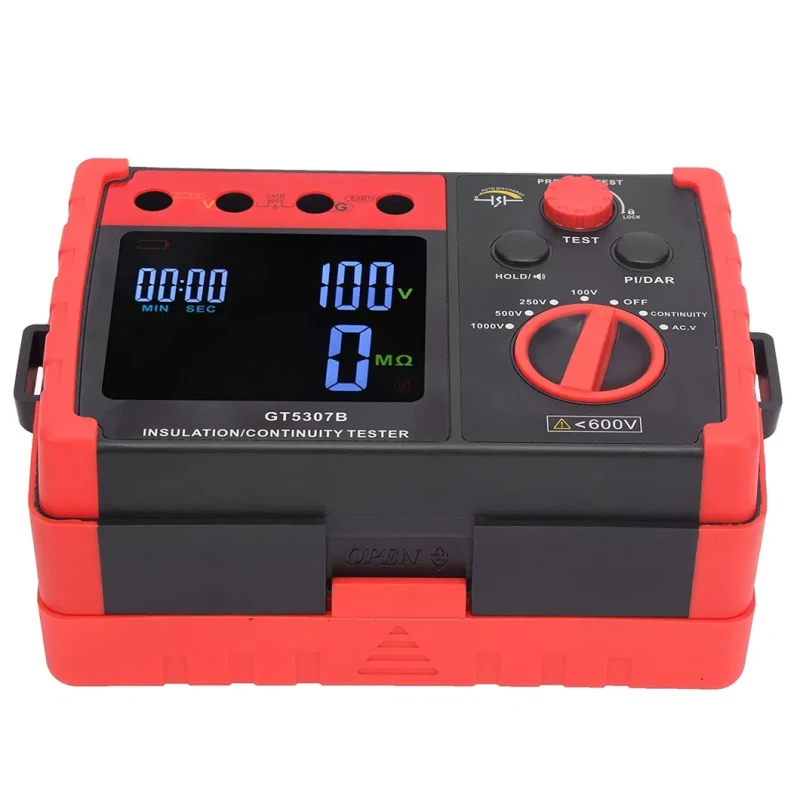

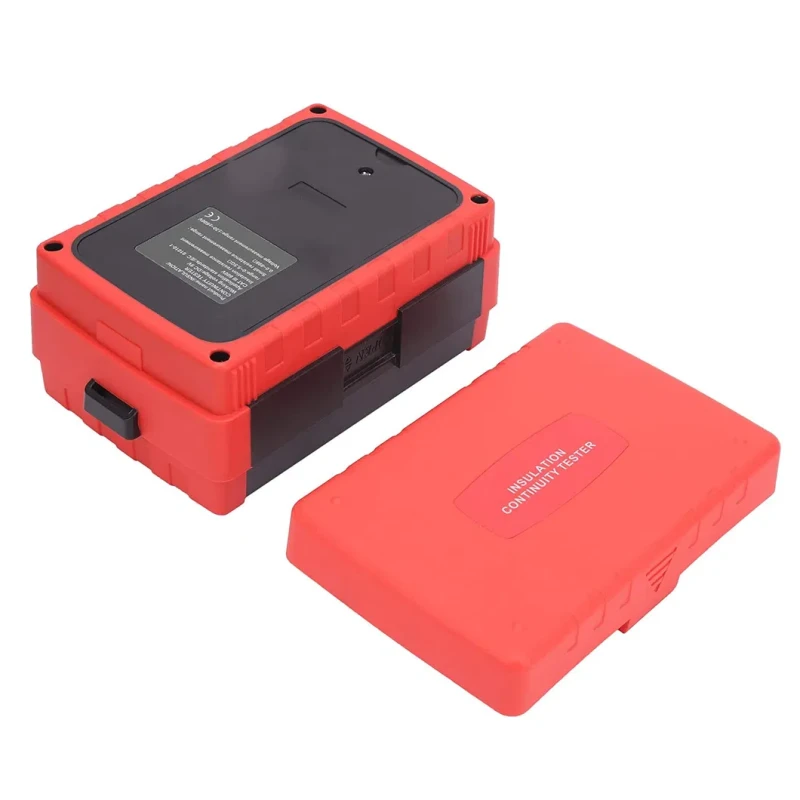

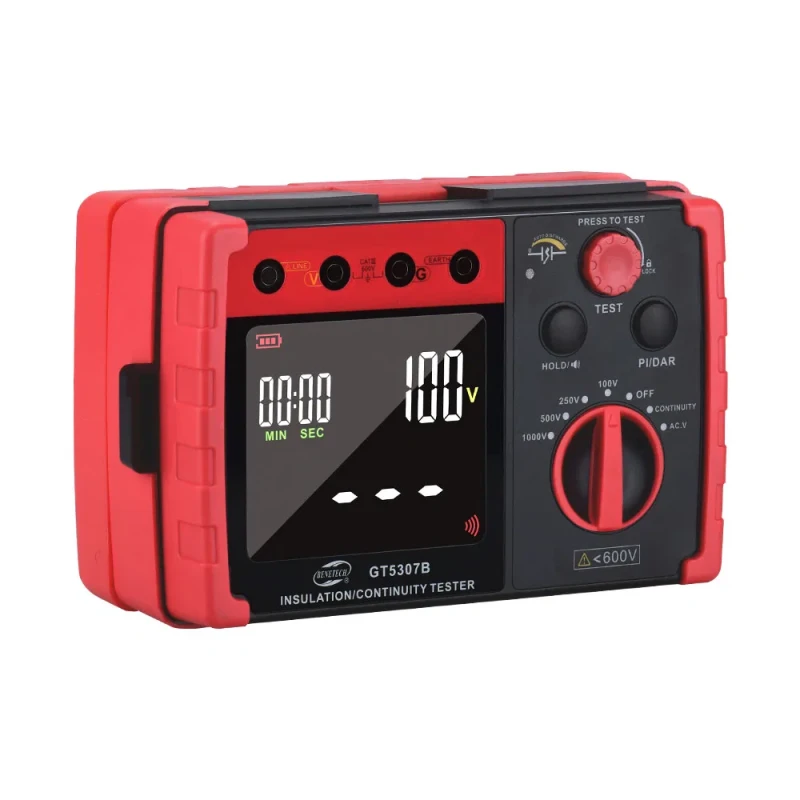

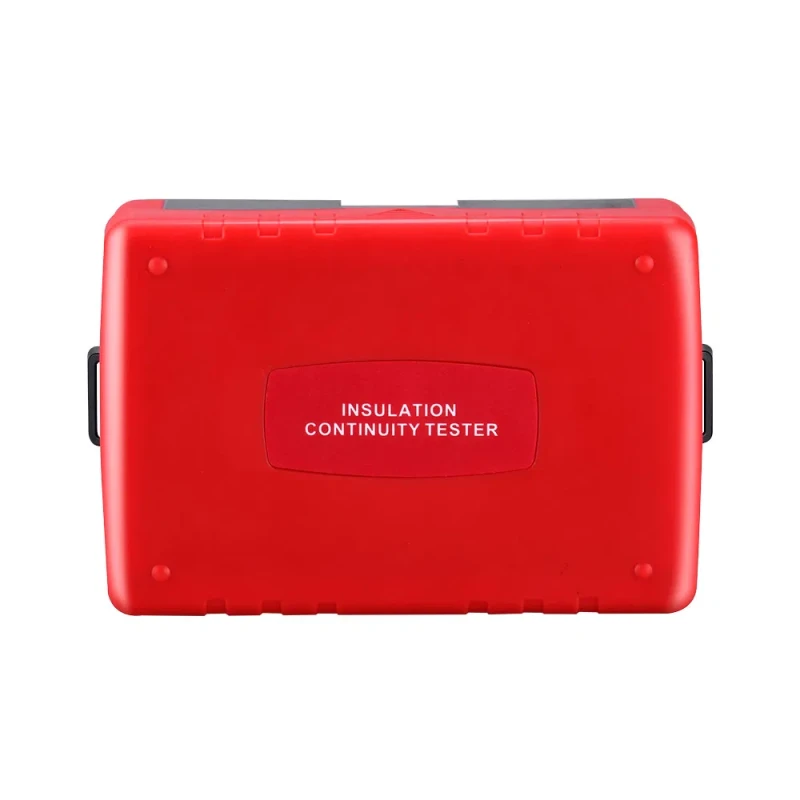

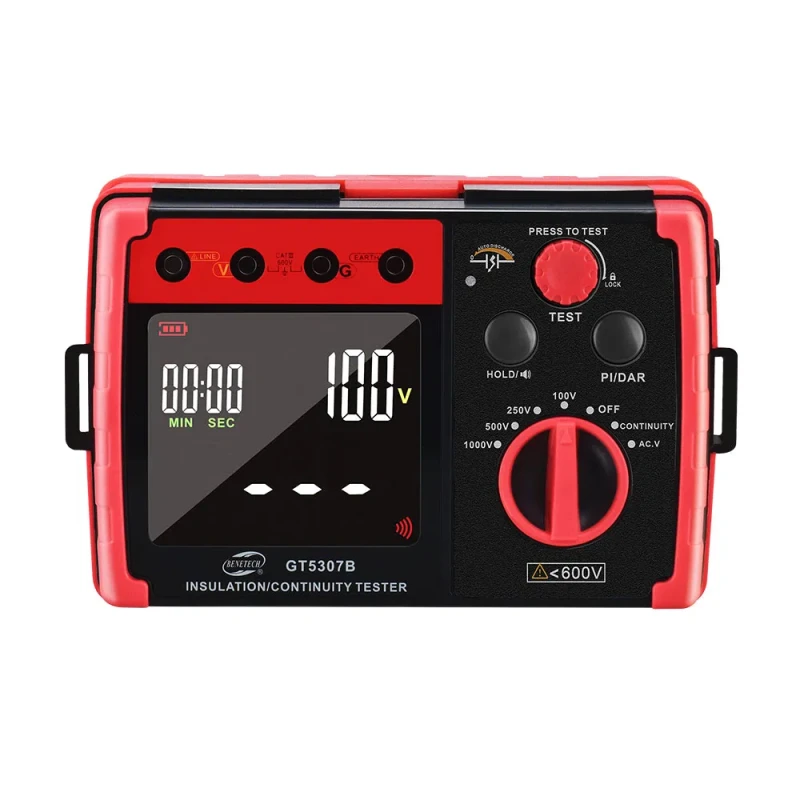

Product Images

GT5307B Digital Megger Insulation Resistance Tester 10M Internal Resistance Measurement
